Learning Objectives
By the end of this lesson, you will be able to:
- Define hub-and-spoke architecture in a Claude multi-agent context
- Explain the role of the hub (orchestrator) and each spoke (worker agent)
- Compare hub-and-spoke to peer-to-peer agent communication
- Identify when hub-and-spoke is the appropriate pattern

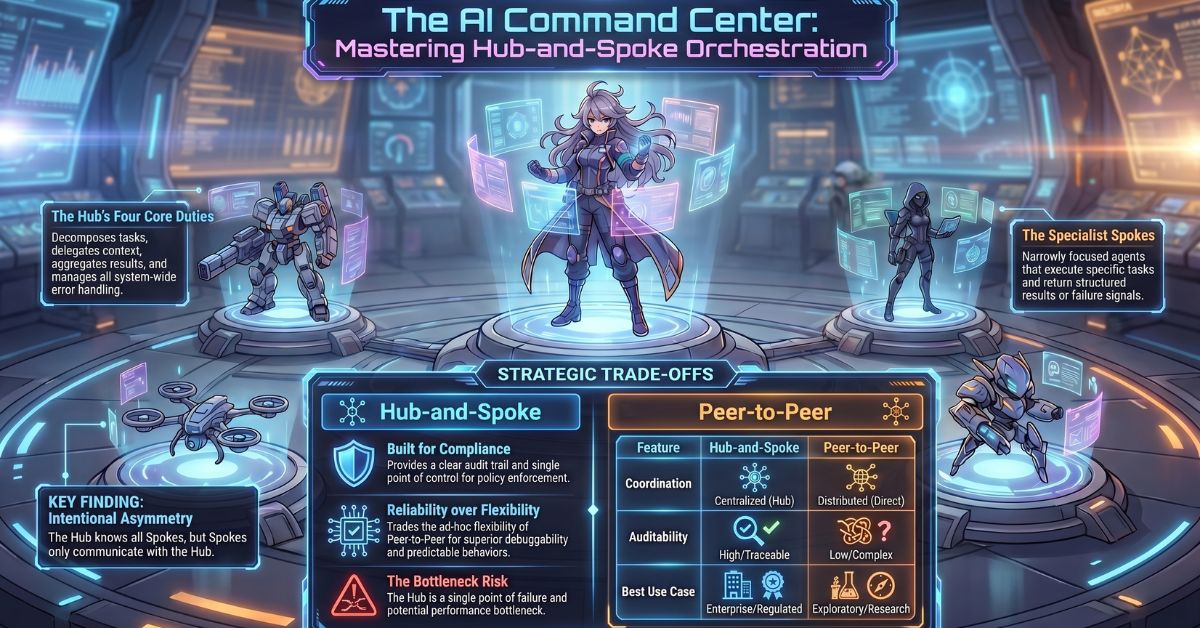

Hub-and-Spoke Orchestration Models
Hub-and-Spoke Defined
Hub-and-spoke is a multi-agent architecture in which a central orchestrator — the hub — receives all incoming tasks, decomposes them into subtasks, delegates each subtask to a designated specialist agent — a spoke — and aggregates the results into a final output. No spoke communicates directly with another spoke. All coordination flows through the hub.
The pattern takes its name from a wheel: the hub sits at the centre, and each spoke extends outward to a specific worker. The hub knows about all spokes. The spokes know only about the hub. This asymmetry is deliberate — it is the source of both the pattern’s strengths and its constraints.
In a Claude multi-agent context, the hub is typically a Claude instance configured with a coordination-focused system prompt. It holds the task-level objective, maintains awareness of which spokes are available and what each one does, and takes responsibility for the overall outcome. Each spoke is a separate Claude instance configured narrowly for a specific domain or operation.
The Hub’s Responsibilities
The hub carries four core responsibilities.
Task decomposition is the first. When the hub receives an incoming task, it analyses the request and breaks it down into the discrete subtasks that the available spokes can execute. The quality of this decomposition determines whether the system as a whole produces a coherent result. A hub that decomposes poorly — creating overlapping subtasks, omitting a necessary step, or delegating to the wrong spoke — introduces errors that no downstream agent can fully correct.
Delegation follows decomposition. The hub constructs the input for each spoke — packaging the relevant context, specifying the required output format, and dispatching the subtask. This is context packaging in practice. The hub decides what each spoke needs to know, and no spoke receives more context than is necessary for its assigned role.
Result aggregation occurs once spokes return their outputs. The hub receives each result, evaluates whether it meets the expected structure and quality criteria, and synthesises the individual outputs into a unified response. Aggregation is not passive collection — the hub must reason about how the outputs relate to one another and how to combine them meaningfully.
Error handling is the hub’s final responsibility. When a spoke returns a failure signal, returns an unexpected output format, or does not respond within the expected time, the hub decides how to proceed. It may retry the delegation, invoke a fallback spoke, degrade gracefully by completing the task with the available outputs, or escalate the failure to the calling system. The hub is the system’s primary error-resolution layer.
The Spoke’s Responsibilities
Spokes are designed for simplicity and clarity. A spoke’s system prompt is narrow. Its tool set is constrained. Its output format is defined.
Each spoke executes one specific task. It does not attempt to reason about the broader workflow, communicate with other spokes, or take initiative beyond its assigned scope. When it completes its task, it returns a structured result to the hub. When it cannot complete its task — due to missing input, a tool failure, or an input that falls outside its configured scope — it signals that failure explicitly rather than returning a partial or fabricated result.
This discipline is what makes spokes reliable. A spoke that attempts to handle edge cases outside its domain, or that returns a best-guess output when it lacks sufficient information, introduces ambiguity that the hub cannot easily detect or correct.
Why Hub-and-Spoke Works
Hub-and-spoke produces four properties that are difficult to achieve in less structured multi-agent architectures.
Predictability. Because all coordination flows through the hub, the system’s behaviour follows a defined path. Given a known input, the sequence of delegations and the structure of the aggregated output are predictable. Predictability is a precondition for reliable production deployment.
Easier debugging. When a hub-and-spoke system produces an incorrect result, the failure is traceable. You examine the hub’s decomposition to see whether the subtasks were correctly defined. You examine the spoke’s output to see whether it returned what was expected. The linear delegation chain makes root-cause analysis tractable.
A clear audit trail. Every delegation the hub makes and every result it receives can be logged. This produces a structured record of what each agent was asked to do and what it returned — a property that compliance-sensitive environments specifically require.
A single point of control. Policy enforcement, access control, and output validation all apply at the hub. You do not need to configure these concerns separately for each spoke. This centralisation simplifies governance.
Hub-and-Spoke Compared to Peer-to-Peer
In a peer-to-peer multi-agent architecture, agents communicate directly with one another without a central coordinator. Agent A can invoke Agent B, which can invoke Agent C, which can return a result directly to Agent A. There is no single authority managing the workflow.
Peer-to-peer architectures offer flexibility. Agents can form ad hoc relationships, adapt dynamically to task requirements, and avoid the bottleneck that a central hub introduces. For exploratory, research-oriented, or loosely structured tasks, peer-to-peer can produce results that a rigid hub-and-spoke system would struggle to accommodate.
The trade-off is complexity. In a peer-to-peer system, the flow of control is distributed across agents. When the system produces an incorrect result, tracing the failure requires reconstructing the sequence of inter-agent communications — which may not have been logged in a retrievable format. Debugging is harder. Auditability requires more deliberate instrumentation. Reasoning about system behaviour under failure conditions demands a more thorough understanding of how each agent-to-agent relationship behaves.
Hub-and-spoke trades the flexibility of peer-to-peer for clarity, traceability, and control. The choice between them is a design decision grounded in the requirements of the specific deployment context.
When to Choose Hub-and-Spoke
Hub-and-spoke is the appropriate pattern when the workflow has a defined structure, when auditability is a requirement, and when the cost of unpredictable agent behaviour exceeds the cost of architectural rigidity.
Enterprise workflows — where tasks follow established processes and deviations require documentation — fit hub-and-spoke well. Compliance-sensitive pipelines — where every action taken by the system must be attributable and reviewable — depend on the audit trail that hub-and-spoke naturally produces. Any system where a stakeholder must be able to answer the question “what did each agent do, and why” benefits from centralised coordination.
Peer-to-peer becomes more appropriate when tasks are exploratory, when the workflow cannot be fully defined in advance, or when the overhead of routing everything through a hub introduces unacceptable latency.
A Worked Example: Customer Support Triage
Consider a customer support system that handles three categories of query: billing disputes, technical issues, and product returns.
The hub receives every incoming customer query. It reads the query, classifies it by category, and delegates it to the appropriate spoke — the billing agent, the technical support agent, or the returns agent — along with the relevant customer context.
Each spoke processes the query within its domain. The billing agent accesses account and payment records. The technical agent accesses product documentation and diagnostic tools. The returns agent accesses order history and return policy rules. Each spoke returns a structured response to the hub.
The hub receives the spoke’s output, evaluates whether it is complete and correctly formatted, and delivers the final response to the customer. If the billing agent signals that a query falls outside its scope — a hybrid billing and technical issue, for example — the hub decides whether to delegate a second subtask to the technical agent and merge the two outputs.
No spoke ever communicates with another spoke. The hub manages all routing decisions.
Limitations of Hub-and-Spoke
The hub is simultaneously the system’s greatest strength and its most significant vulnerability.
As task volume increases, all requests flow through a single coordination layer. The hub becomes a bottleneck. In high-throughput systems, this constraint requires either optimising the hub’s processing speed or introducing parallel hub instances — which adds its own coordination complexity.
The hub is also a single point of failure. If the hub fails without a fallback mechanism in place, the entire system halts. Robust hub-and-spoke deployments address this with redundancy: a secondary hub that can assume coordination responsibilities if the primary hub becomes unavailable. This fallback design must be deliberate — it does not emerge automatically from the architecture.
Key Takeaways
- Hub-and-spoke places a central orchestrator at the coordination layer, with all task delegation and result aggregation flowing through the hub and no direct spoke-to-spoke communication.
- The hub is responsible for task decomposition, delegation, result aggregation, and error handling; the spoke is responsible for executing one defined task and returning a structured result or a clear failure signal.
- Hub-and-spoke trades the flexibility of peer-to-peer communication for predictability, debuggability, auditability, and centralised control — properties that enterprise and compliance-sensitive systems specifically require.
- The hub is the system’s single point of control and its single point of failure; production deployments must account for hub redundancy and fallback behaviour explicitly.
What Is Tested
Exam questions on hub-and-spoke orchestration present a described system and ask candidates to determine whether hub-and-spoke or peer-to-peer is the more appropriate pattern for that context, with justification grounded in the system’s auditability requirements, workflow structure, and failure tolerance. A second category of question describes a hub-and-spoke implementation and asks candidates to identify a design flaw — for example, a spoke that communicates directly with another spoke, a hub that delegates without packaging sufficient context, or a system that lacks a defined failure signal convention between spokes and the hub. Candidates are expected to reason from architectural principles rather than recall definitions alone.
